NYC Renovation Case Study
Downtown Brooklyn Chevron-Tile Bathroom Renovation
A compact Downtown Brooklyn bathroom renovation with marble-look chevron feature tile, sliding glass tub enclosure, rain shower, handheld spray, floating wood vanity, and dark hex floor tile.
Get Your Free On-Site EstimateThis Downtown Brooklyn bathroom renovation keeps a space-efficient tub-and-shower layout and adds a marble-look chevron feature wall, white subway tile, sliding glass enclosure, fixed rain shower, handheld spray, floating wood vanity, and dark hexagonal floor tile. Comparable compact NYC bathroom renovations now commonly plan around $30,000–$60,000+ and 5–8 weeks of construction.
The Project
A Chevron-Tile Bathroom Designed for a Compact Brooklyn Layout
The strongest feature in this completed bathroom is the chevron tile behind the tub. Its alternating gray-and-white pattern gives the wet area movement and depth, while plain white subway tile on the adjacent walls keeps the room from feeling busy. A clear sliding glass enclosure preserves the view of the pattern and contains water without needing the swing space of a hinged door.

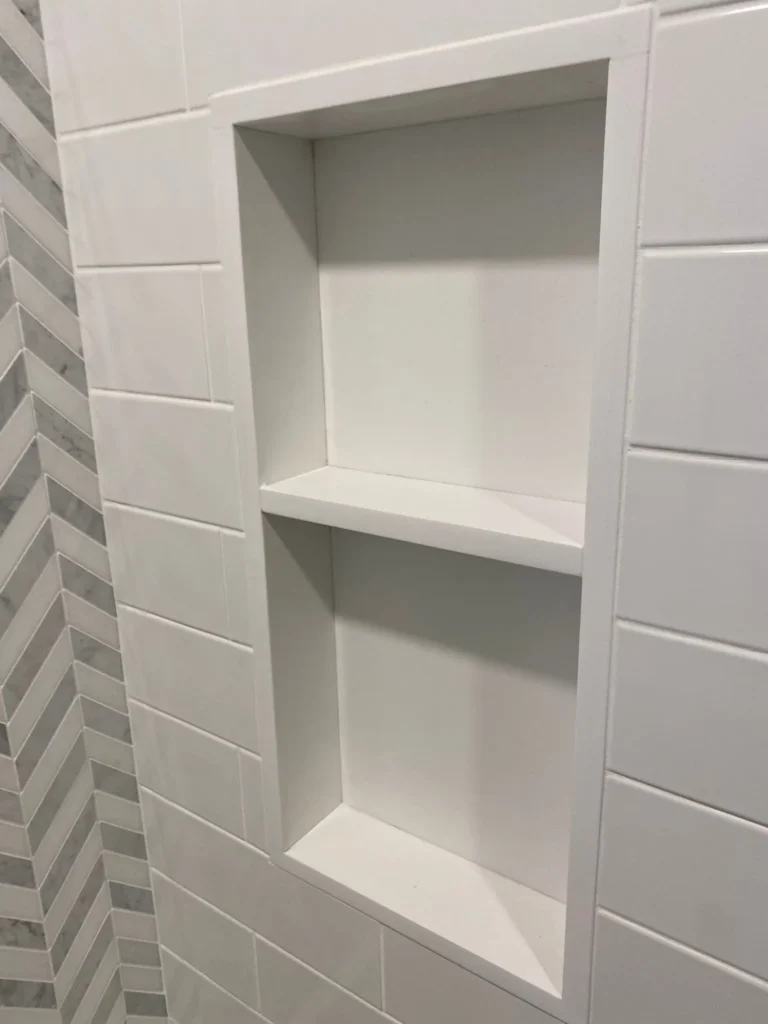

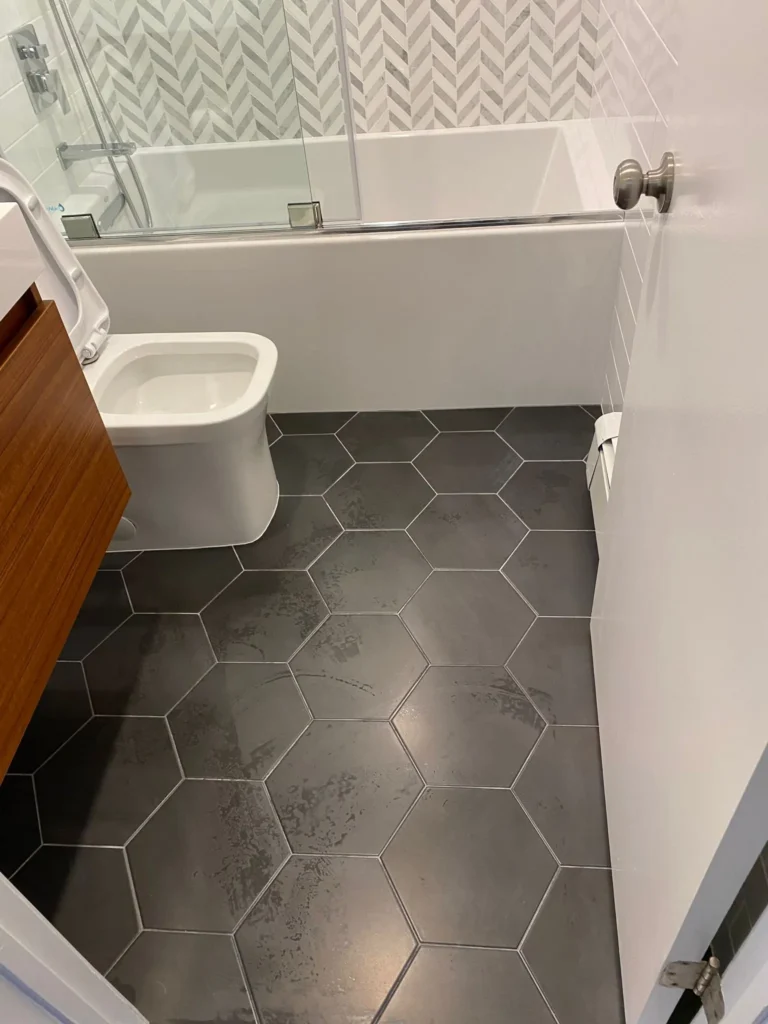

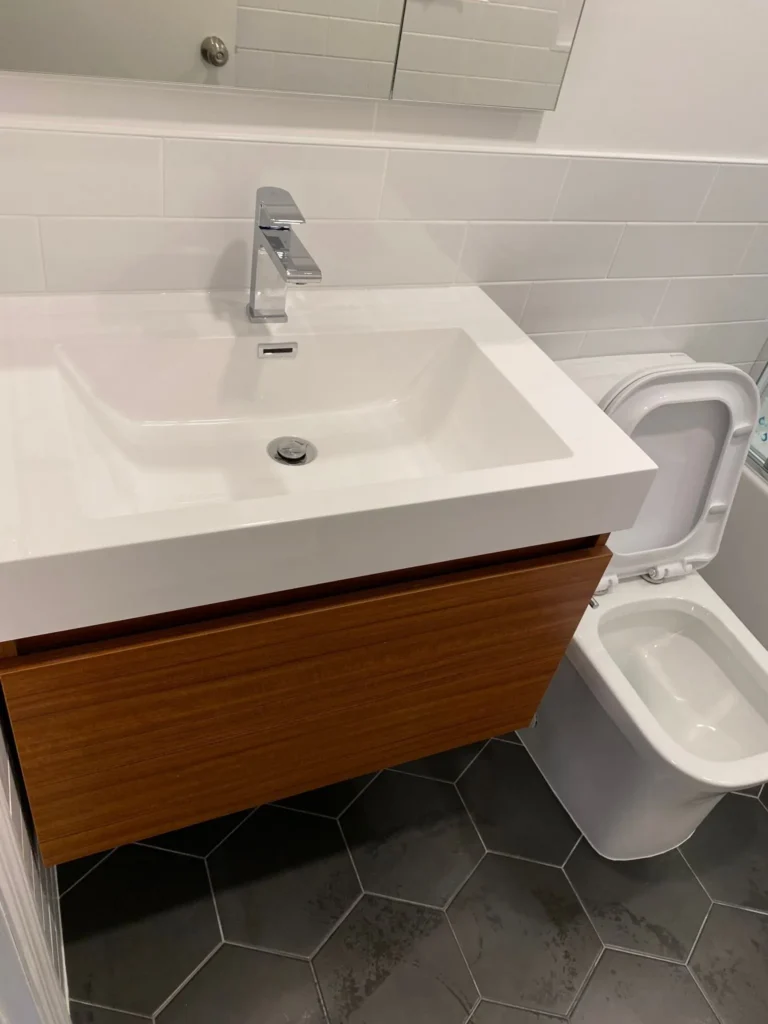

The rest of the material palette supports the same small-space strategy. A wall-hung wood vanity adds warm color and keeps more floor visible, while large dark hexagonal tile gives the bathroom a durable visual base. The fixed rain shower and separate handheld spray make the tub practical for both showering and cleaning. Recessed shelves place bottles inside the tiled wall instead of taking up the tub edge.
Photo note: Every image on this page is an archived photograph of the completed Downtown Brooklyn renovation. Current costs and schedules below are planning guidance for comparable work, not the private project invoice.
Completed Work
Completed Downtown Brooklyn Bathroom Details
Archived project photographs show the chevron feature wall, subway tile, sliding glass enclosure, shower fittings, recessed niche, floating wood vanity, and dark hexagonal floor.
Scope of Work
What a Chevron-Tile Bathroom Requires
- Protection and demolitionProtect apartment surfaces and common areas, disconnect fixtures safely, and remove the existing finishes included in the approved scope.
- Plumbing and electrical coordinationCoordinate the tub, valve, fixed shower, handheld spray, vanity, toilet, lighting, receptacles, and required licensed-trade work.
- Wet-area preparationRepair or rebuild stable substrates, complete the specified waterproofing system, and check planes before setting small-format patterned tile.
- Chevron and subway tile layoutEstablish the feature-wall centerline, balance cuts, maintain clean pattern alignment, and resolve corners, niches, and penetrations before installation.
- Compact fixtures and glassInstall the floating vanity, sink, toilet, shower trim, and sliding enclosure while preserving usable clearances.
- Testing and close-outTest supply, drainage, shower operation, enclosure seals, lighting, and ventilation; complete accessories, cleaning, and the final punch list.
Cost & Timeline
Current Planning Ranges for a Downtown Brooklyn Bathroom
| Comparable scope | Current planning range | Construction time |
|---|---|---|
| Same-layout full bathroom renovation | $30,000–$45,000 | About 5–7 weeks |
| Chevron feature tile, premium shower fittings, and glass | $45,000–$60,000 | About 6–8 weeks |
| Layout changes or substantial plumbing and electrical work | $60,000+ | About 7–10+ weeks |
Final pricing depends on the existing room, demolition, plumbing and electrical conditions, waterproofing scope, tile complexity, fixture quality, permits, building rules, and access. Design, board review, permit processing, and material lead times happen before the construction periods shown above.
Five Steps
How a Downtown Brooklyn Bathroom Renovation Moves Forward
-
Assess the room and buildingConfirm dimensions, fixture clearances, existing systems, ventilation, alteration rules, work hours, elevator use, and delivery access.
-
Finalize layout and materialsSelect tile, fixtures, vanity, glass, lighting, and accessories; then document the pattern and all finish transitions.
-
Complete approvals and protectionPrepare management documents and permits when required, schedule water shutoffs, and protect the apartment and common route.
-
Build in trade sequenceComplete demolition, rough plumbing and electrical, inspections, waterproofing, tile, paint, glass measurement, and finish installation.
-
Test and close outCheck drainage, shower controls, glass movement, fixtures, outlets, lighting, ventilation, sealants, cleaning, and the punch list.
Tile Planning
How to Keep a Chevron Feature Wall Precise
Chevron tile makes alignment visible, so the setting surface and layout need special attention. The installer should establish a centerline, test the pattern against the full wall width, and coordinate cuts around the shower arm, valve, tub edge, glass hardware, and niche before setting begins. A small error repeated over many rows becomes obvious near the ceiling or corner. Flat substrates and consistent joints matter as much as the tile itself.
In an apartment renovation, construction planning extends beyond the bathroom door. The proposal should identify common-area protection, debris routes, water-shutoff procedures, licensed trades, inspections, work hours, glass lead time, and management close-out. Ordering the shower fittings and vanity early also allows rough plumbing to match the actual products rather than approximate dimensions.
Explore our NYC bathroom renovation services, review the New York City areas we serve, browse more completed projects, or request a free on-site estimate.
Frequently Asked Questions
Downtown Brooklyn Bathroom Renovation FAQs
How much does a bathroom renovation cost in Downtown Brooklyn?
Comparable compact Downtown Brooklyn and NYC bathroom renovations commonly plan around $30,000–$60,000 or more. Plumbing and electrical work, tile complexity, waterproofing, glass, fixture quality, permits, and building rules can change the total.
How long does a Downtown Brooklyn bathroom renovation take?
Construction commonly takes about five to eight weeks after approvals and materials are ready. Layout changes, inspections, restricted building hours, concealed repairs, custom glass, and special-order products can extend the schedule.
Is chevron tile harder to install than subway tile?
Chevron tile demands careful centering, flat substrates, consistent joints, and coordinated cuts at corners and plumbing penetrations. The pattern can require more layout and setting time than a straightforward subway-tile field.
Does an apartment bathroom renovation need building approval?
Many Downtown Brooklyn condo, co-op, and rental buildings require an alteration agreement, insurance documents, work-hour compliance, elevator coordination, and protection plans. These building requirements are separate from any NYC permits and inspections.
Can a sliding glass enclosure help in a small bathroom?
Yes. A sliding enclosure can contain water without requiring the swing clearance of a hinged door. Final suitability depends on the tub, wall conditions, hardware, access, and the available opening width.
Does WhiteStar renovate bathrooms elsewhere in Brooklyn?
Yes. WhiteStar provides full-scope bathroom, apartment, brownstone, and interior renovation services across Brooklyn as well as Manhattan, Queens, and Staten Island, subject to project size and an on-site assessment.
